High speed rotary bag making

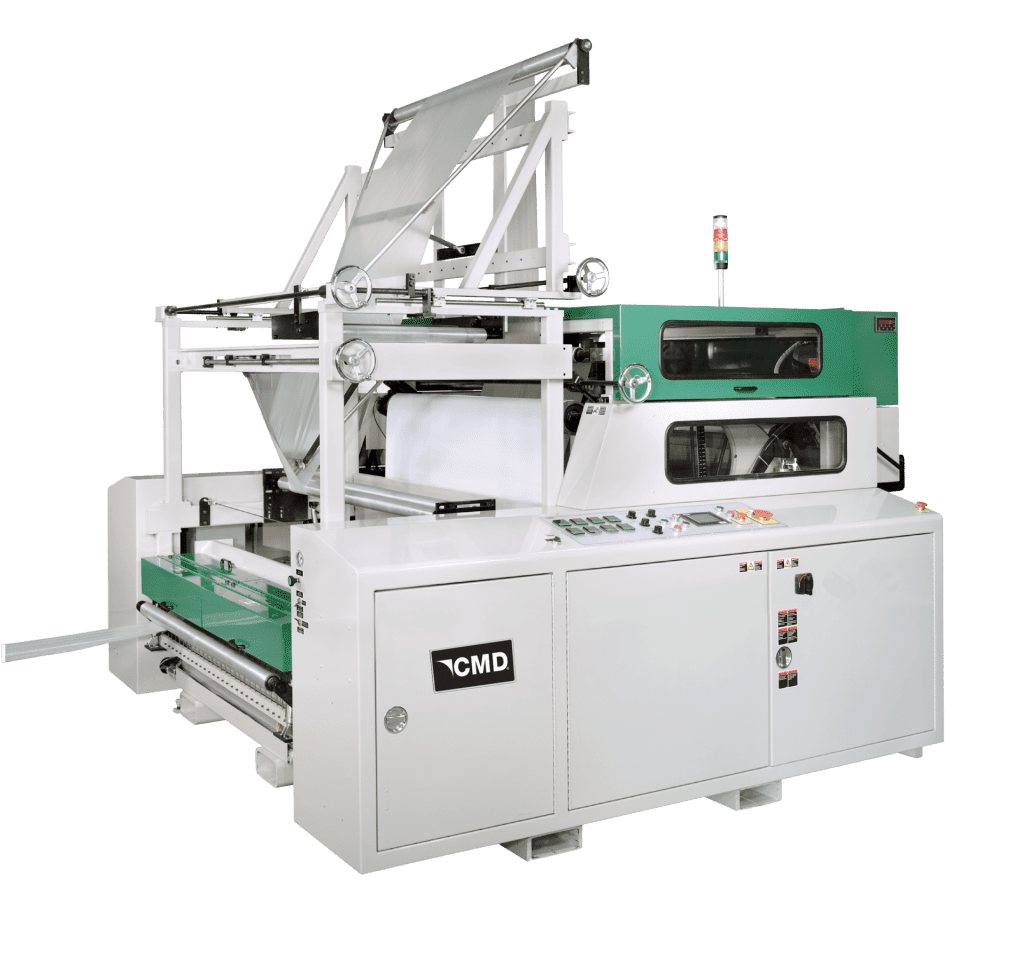

The 1552ED series bottom seal bag making machines offer high speed bag production up to 600 fpm (183 mpm.) An enlarged drum allows superior sealing of special blends and heavy-gauge films. The 1552ED rotary bag machines can be configured to run in-line with an extruder or use parent rolls of tube or pre-slit material to make side or bottom sealed bags. Bottom or side seals are applied in the blanket and drum section. A series of perforations are placed either next to the bottom seal or in-between the side seals to allow for separation of the bags. The 1552ED series bottom seal bag making machine from CMD offers high-performance bag making in a robust system designed for years of troublefree, profitable operation.

Model 1552 Series bottom seal bag machines feature:

• Four precision machined retractable seal bars for easy changeovers
• Automatically retracting seal bars prevent burn-offs
• Digital line speed indicator and solid state electrical temperature controls for easy operation and maintenance
• Safety guard package equipped with interlocking safety access system
• Central lubrication system for easy maintenance
• Single or multiple lane capabilities
