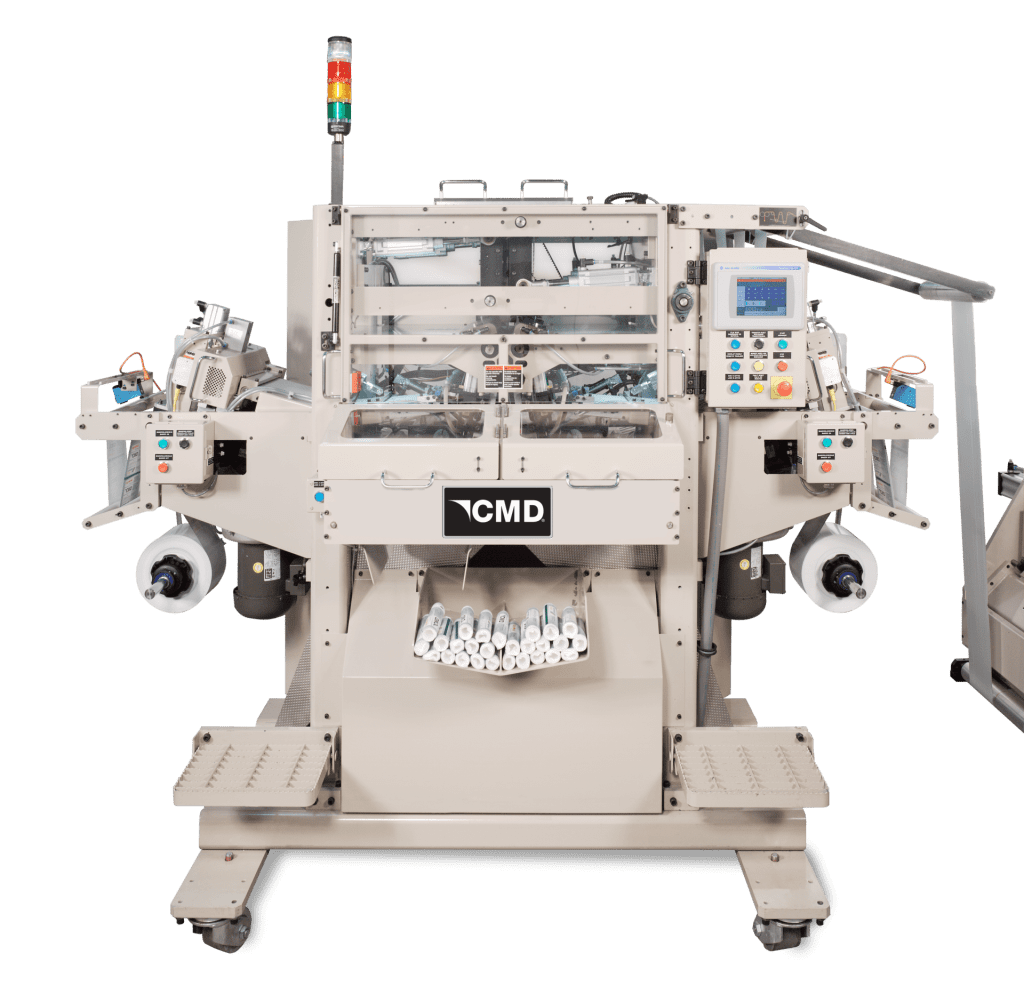

High-Speed Overlap Bag Winder – Small Roll

Model 0330HSW 15
Contact Sales
High Speed Overlap Bag Winder – Small Roll
Overlap And Non Overlap Bags On Rolls
High Speed Overlap Bag Winder – Small Roll
Overlap And Non Overlap Bags On Rolls

Dual-turret design for high-cycle rate, overlap winding of small-count rolls

This compact powerhouse produces coreless rolls of overlapped or continuous-perfed bags or sheeting at amazing speeds up to 600 feet per minute and, for small count rolls, up to 30 cycles per minute. The unique design is accessible from five sides of the machine for operator and maintenance ease and safety.

Model 0330HSW features:

  • Universal-handed design
  • Easy access from all sides
  • Courtesy internal lighting for operation and maintenance ease
  • CE Compliant
  • Roll labeling option

Compatible With

Specifications

Model
0330HSW 15
Machine Speed
60 fpm (18mpm) – 600 fpm (183 mpm)
Material
LDPE, LLDPE, MDPE, HDPE
Roll width
127 mm (5 in) – 330 mm (13 in)
Roll diameter
32 mm (1.25 in) – 203 mm (8 in)
Cycles
30 cpm
